LARGE BORE BUTTERFLY

VALVES

Cast body steel in DI or WCB, or Stainless Steel



LARGE BORE SIZES UP TO DN2000

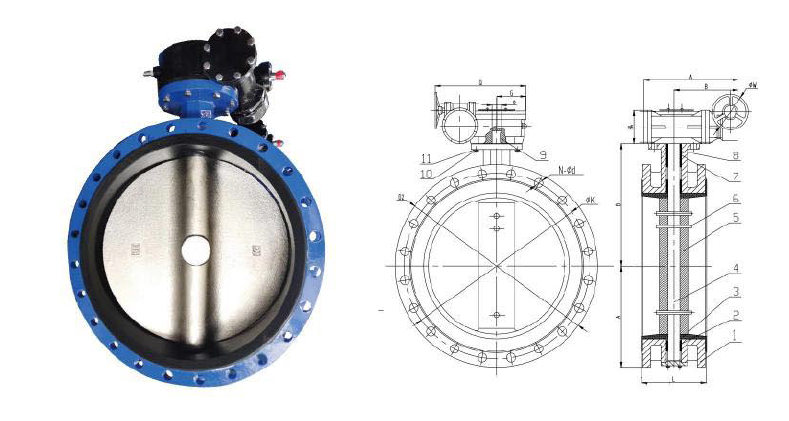

CONCENTRIC BUTTERFLY VALVES



All concentric Butterfly valves are made solid and heavy body, with drilled shaft holes to ensure the same concentricity of the upper and lower shafts. This reduces shaft and body friction, reducing torque allowing the valve to open and close easier.



Valve seats offered in EPDM, NBR, Viton and Hypalon. All valve external bodies coating in a durable Epoxy coating up to 250micron. All valves are supplied with a warranty and test certification.



Flanged Butterfly Size Range: DN50 – DN1200

Wafer Butterfly Size Range: DN50 – DN1200

Lugged Body Wafer Size Range: DN50 – DN1200

Control Type: Lever, Worm Gear, Electric or Pneumatic actuated

Pressure: PN10/16/150LB/10K

Body Material: CI/DI/WCB/CF3/ CF3M/CF8/ CF8M

Seat Material: NBR/EPDM/PTFE/SI

Disc Material: DI/CF3/ CF3M/CF8/CF8M/ C954

Stem Material: SS420/ 2Cr13/SS304/SS316

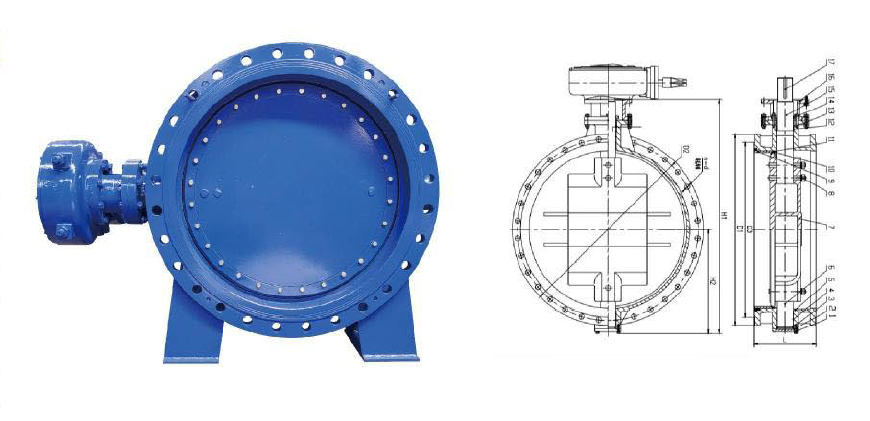

DOUBLE ECCENTRIC BUTTERFLY VALVE S



All Double Eccentric Butterfly valves adopt disc sealing structures, which achieves two-way sealing with zero leakage. The body seal ring surface is SS304, which is more wear resistant, and provides extended life to the valve.

API STD Flanged Butterfly Size Range: DN50 – DN1400

Flanged Butterfly Size Range: DN50 – DN2000

API STD Wafer Butterfly Size Range: DN50 – DN1200

Wafer Butterfly Size Range: DN50 – DN2000

Control Type: Lever, Worm Gear, actuated

Pressure: PN10/16/150LB/10K

Body Material: CI/DI/WCB/CF3/ CF3M/CF8/ CF8M

Seat Material: NBR/EPDM/PTFE/SI

Disc Material: DI/CF3/ CF3M/CF8/CF8M/ C954

Stem Material: SS420/ 2Cr13/SS304/SS316

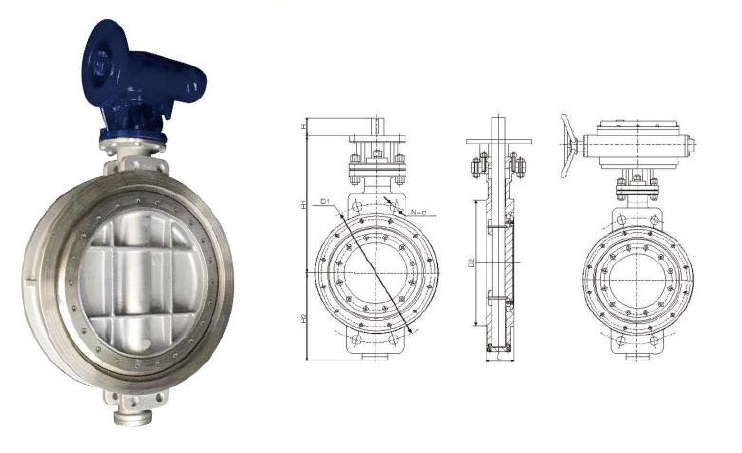

TRIPPLE ECCENTRIC BUTTERFLY VALVES



The triple Eccentric butterfly valve incorporates the two offset points of the double, but it also has a third point of offsets. Relating this time to the sealing points rather than the shaft, the point of sealing on the disc and seat are both machined into an offset conical profile. This allows it to operate fully without any contact until the point of full closure as a mechanical stop.

API STD Flanged Butterfly Size Range: DN50 – DN1400

Flanged Butterfly Size Range: DN50 – DN2000

API STD Wafer Butterfly Size Range: DN50 – DN1200

Wafer Butterfly Size Range: DN50 – DN2000

Control Type: Lever, Worm Gear, actuated

Pressure: PN10/16/150LB/10K

Body Material: CI/DI/WCB/CF3/ CF3M/CF8/ CF8M

Seat Material: NBR/EPDM/PTFE/SI

Disc Material: DI/CF3/ CF3M/CF8/CF8M/ C954

Stem Material: SS420/ 2Cr13/SS304/SS316
